Anker SOLIX F3800 vs F3800 Plus

Retail MAP only. F3800 $2,199.99 · F3800 Plus $2,599.99 · BP3800 expansion $1,799.99. Specs below match Anker’s F3800 vs F3800 Plus upgrade board. Watchdog / Sunsolvers leads F3800 Plus for Class C / RV.

Anker upgrade board

Side-by-side specs

Specification	F3800	F3800 Plus
AC rated power	6,000W	6,000W
AC voltage	120V / 240V	120V / 240V
AC peak power	9,000W	9,000W
Solar input power	11–28V⎓10A; 28–60V⎓27A; 2×1,200W Max	11–165V⎓17A; 2×1,600W Max
Capacity	3,840Wh	3,840Wh
Extra battery capacity	3,840Wh each (BP3800)	3,840Wh each (BP3800)
Max extra batteries	6 (up to 23.04kWh)	6 (up to 23.04kWh)
AC input power	1,800W Max, 120V~15A	1,800W Max, 120V~15A
Est. recharge time (AC)	1,800W, ~2.67H to 100%	1,800W, ~2.67H to 100%
Battery life cycle	80% after 3,000 cycles	80% after 3,000 cycles
EV / RV outlet (big difference)	NEMA 14-50 — common EVSE / Level-2 style plug-in (plus L14-30 + 6× AC)	NEMA TT-30R — standard 30A RV receptacle instead of 14-50 (plus L14-30 + 6× AC). Not a built-in EV charger outlet.
AC sockets (full set)	1× NEMA 14-50; 1× NEMA L14-30; 6× AC	1× NEMA TT-30R; 1× NEMA L14-30; 6× AC
240V fuel generator charging	No	Yes
Dimensions	27.6″ × 15.3″ × 15.6″	27.6″ × 15.3″ × 15.6″
Retail MAP (Sunsolvers)	$2,199.99	$2,599.99
Best fit (Sunsolvers)	Keeps 14-50 for EV / large loads · value 6kW portable	Class C / RV lead · TT-30R (not 14-50) · more solar · 240V gen charge

Source: Anker SOLIX F3800 vs F3800 Plus upgrade board. Always confirm Voc/Isc against current Anker port ratings before wiring panels.

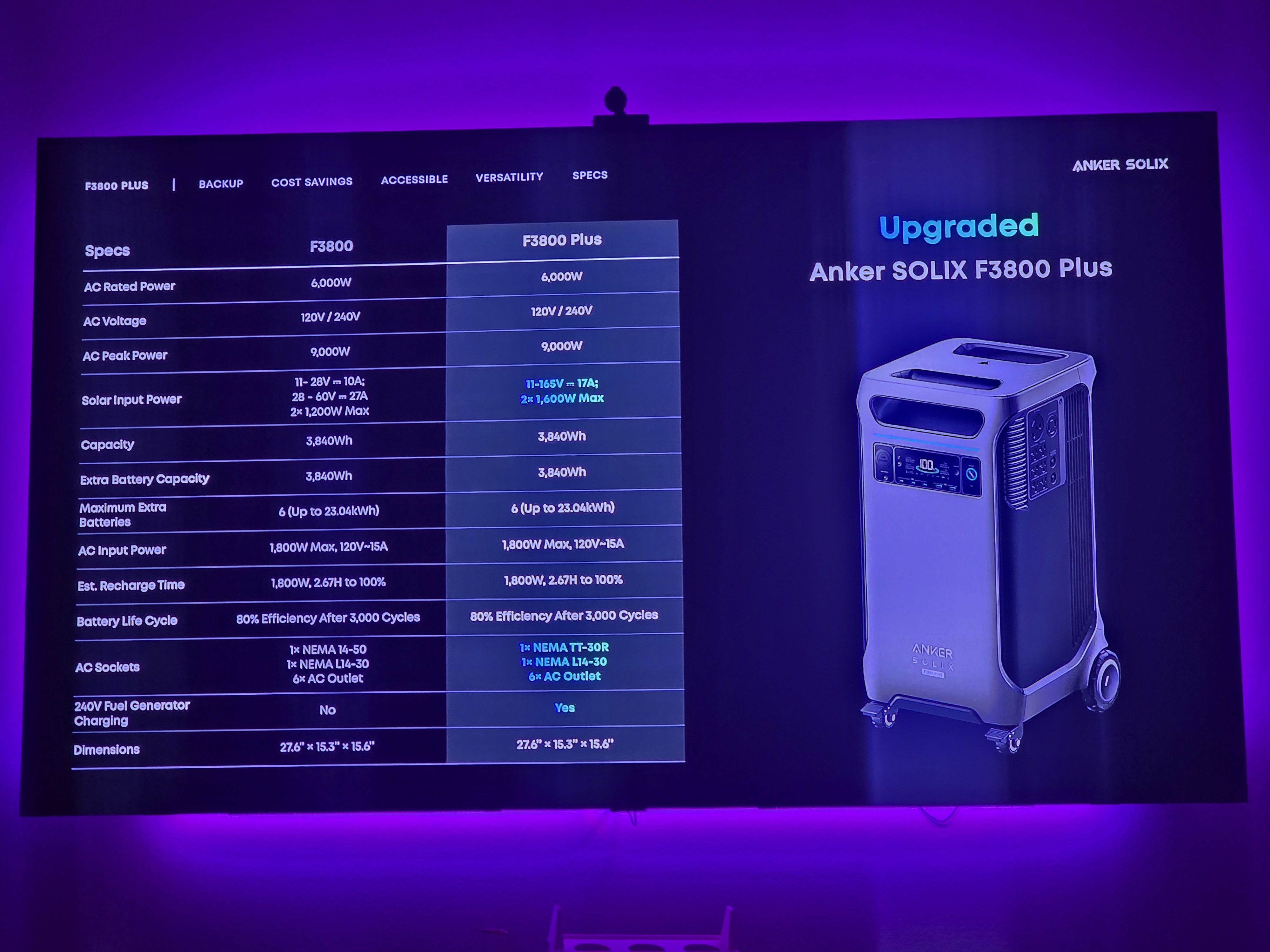

Anker SOLIX official F3800 vs F3800 Plus specification comparison board — Anker’s upgrade board — Plus differences: more solar, TT-30R instead of 14-50 (base keeps the EV-friendly 14-50), and 240V generator charging.

Shared DNA

What they have in common

If you only need big portable capacity and split-phase 240V, either unit covers the core job.

Capacity & output

Both: 3,840Wh, 6,000W rated / 9,000W peak, 120V/240V — serious camp, jobsite, or partial-home backup when sized correctly.

Expandability

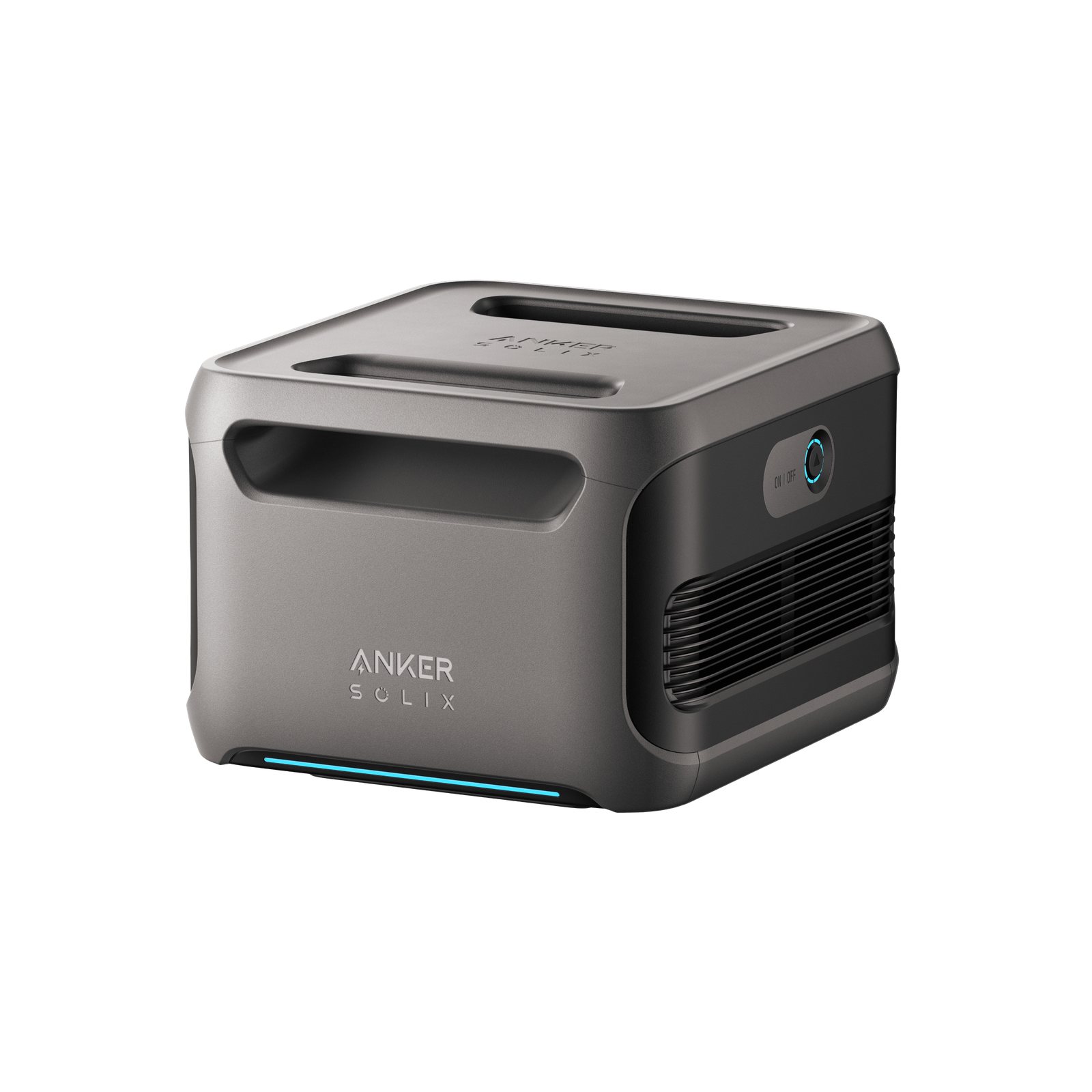

Same BP3800 family: +3,840Wh each, up to 6 extras (23.04kWh total). MAP $1,799.99 per expansion.

Size & AC wall charge

Identical footprint (27.6″ × 15.3″ × 15.6″) and 1,800W / 120V AC input (~2.67 hours to full).

Key differences

Where F3800 Plus pulls ahead

1. Solar input — wider voltage, more watts

F3800

11–28V⎓10A and 28–60V⎓27A paths; 2×1,200W Max (2,400W class total). Size arrays carefully to those voltage windows.

F3800 Plus

11–165V⎓17A with 2×1,600W Max (3,200W class). Better match for coach roof solar or a larger parked array.

2. EV vs RV outlet — 14-50 vs TT-30R

This is one of the biggest practical differences. Neither unit is a dedicated wallbox EV charger, but the outlet on the station decides what you can plug in directly.

F3800 — better for EV-style plugs

Keeps a NEMA 14-50 receptacle — the same style plug many portable Level-2 EVSE units and large appliances use — plus L14-30 and 6× AC.

F3800 Plus — better for RVs

Replaces the 14-50 with a NEMA TT-30R (standard 30A RV receptacle), plus L14-30 and 6× AC. Built for Class C / campground hookups — not a built-in EV outlet.

3. 240V fuel generator charging

F3800

No 240V fuel-generator charging on Anker’s board.

F3800 Plus

Yes — charge from a 240V fuel generator when solar and shore power are not enough.

Recommendations

Who should buy which?

A1790111 · F3800 base

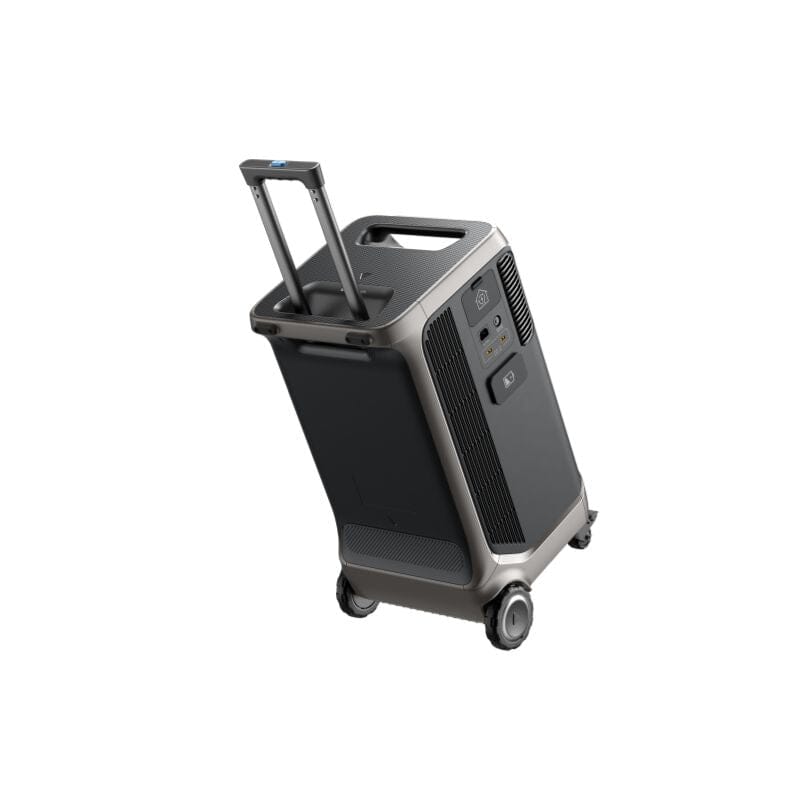

Choose the F3800 if…

$2,199.99 Retail MAP

You want the lower MAP entry into the 6kW / 3.8kWh class
You want the built-in NEMA 14-50 for EVSE / Level-2 style plugs or large appliances
2×1,200W solar is enough for your array
You do not need 240V fuel-generator charging

View F3800 on products

Lead · Class C / RV

A1790112

Choose the F3800 Plus if…

$2,599.99 Retail MAP · our Class C lead

You’re outfitting a Class C / whole-coach portable path
You want the built-in TT-30R RV receptacle (and do not need the 14-50 for EV)
You want up to 2×1,600W solar @ 11–165V
You want 240V fuel-generator charging
